IRDRX822SGS

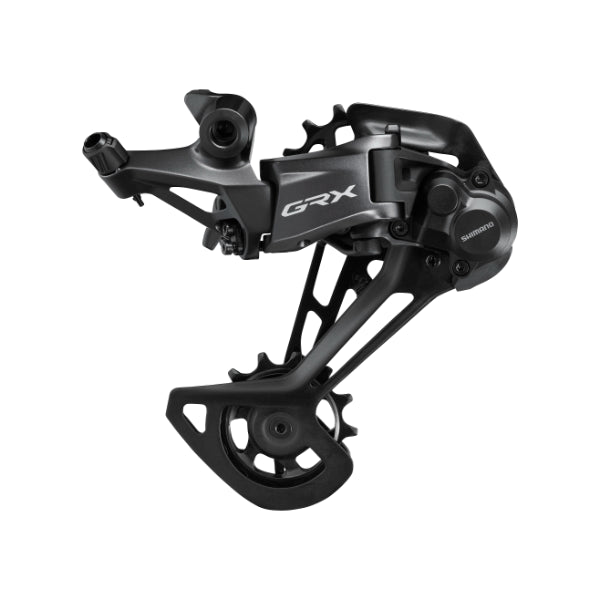

Shimano RD-RX822 SGS Rear Derailleur GRX 1x12 51T Max

Notify me when this product is available:

The Shimano GRX RD-RX822 12-speed rear derailleur was developed for gravel use with 1x drivetrains and mountain bike cassette. It scores with quiet, reliable shifting and excellent chain security. In the version with a long SGS cage, it has a capacity of 41 teeth and is compatible with the 10-51 T gradation. The version with the shorter GS cage has a capacity of 35 teeth and shifts cassettes with 10-45 T. In fact, the cage can be replaced, so you don't need a completely new rear derailleur when you change the cassette. Both versions feature Shadow Plus technology, a built-in chain stabiliser that prevents the chain from slapping on rough surfaces and thus counteracts chain drop. The function can also be switched off when you are riding on smoother roads or when you want to remove the wheel. RD-RX822 is largely made of aluminium and therefore does not weigh a gram too much. The bearings of the guide and tension pulley wheels contribute to the smooth performance.

Specifications

SeriesGRX RX820
ApplicationGravel
Gearing12-speed
Mountstandard
Capacity 41 tooth
CompatibilityShimano MTB 12-speed
Compatibility - ChainsHG 12-speed

Technical Information

Derailleur Pulleys13-tooth
Outer Cage Materialaluminium
Inner Cage Materialaluminium
Other Materialsaluminium, composite material (GFRP), stainless steel, steel

Features

  • mechanical rear derailleur for gravel bikes with 1x12-speed setup and MTB cassette
  • safe and quiet shifting on mixed surfaces
  • smooth and reliable gear changes
  • version with short (medium) cage (GS) for cassettes with 10-45 T
  • version with long cage (SGS) for cassettes with 10-51 T
  • cage replaceable for full flexibility
  • adjustable chain stabilisation prevents chain drop
  • stabiliser with on/off switch to adapt to the terrain and for easy wheel removal
  • flat design prevents getting stuck on obstacles
  • painted cage plates
  • derailleur pulley bearings
  • 6 pivot bushings, fluorine-coated

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

OT-RS900
For Dura-Ace, Ultegra, 105, GRX and other 11-speed or 12-speed road and gravel rear derailleurs, Shimano has developed the special OT-RS900 cable housing. It is less stiff than the conventional OT-SP41 housing and is therefore better suited to the tight curve where the cable is routed from the frame to the rear derailleur. Thanks to OT-RS900, problems with the barrel adjuster can be prevented and the rear wheel can be removed more easily. OT-RS900 is not intended for use on the shift/brake lever side.
